Case Study

Custom Microphone Protective Woven Wire Mesh Cylinder Case

Feb. 24, 2024

We provide custom woven wire mesh cylinders for the Ornithology Lab at Cornell University in the United States for microphone protection of acoustic equipment in the field. We provide detailed dimensional drawings to ensure that each product precisely meets the customer's requirements. Each product undergoes strict inspection before leaving the factory to ensure that the quality meets the product standards.

Custom Specifications
  • Material: SS304
  • Mesh count: 40 mesh
  • Wire diameter: 0.2 mm
  • Aperture: 0.44 mm
  • O.D.: 28 mm
  • I.D.: 25 mm
  • Total length: 35 mm
  • Flange edge thickness: 2 mm
  • Flange lower edge thickness: 3 mm
Product Drawings
Front and bottom drawings of a woven wire mesh cylinder, with detailed data.
Product Applications

Our woven wire mesh cylinder are widely used on microphones of wildlife acoustic recorders, aiming to protect the microphones from damage by animals. The product is uniquely designed with self-contained pores that do not affect sound recording in any way, ensuring undisturbed results in outdoor experiments. In addition, the woven wire mesh cylinder has excellent physical properties and can adapt to rainy and humid areas, and can operate stably in temperatures ranging from -20 °C to +40 °C. Our customers have successfully installed acoustic recorders with woven wire mesh cylinder in Congo (Africa), Malaysia, Panama, the West Coast of the United States, New Zealand, etc. These cases fully demonstrate the reliability and effectiveness of the product in practical applications.

Product Inspection

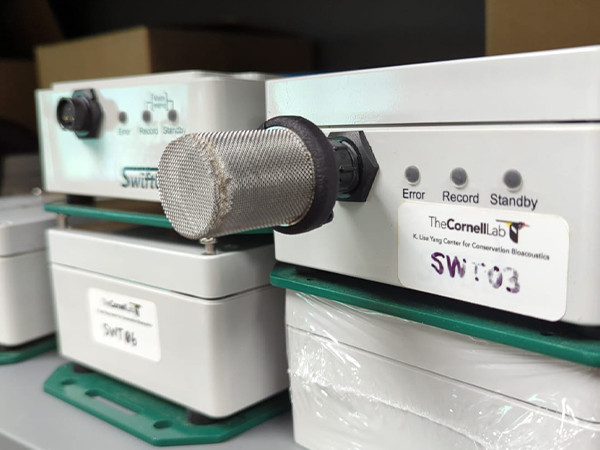

4 acoustic recorders are displayed, with one installed with a woven wire mesh cylinder

Installation effect

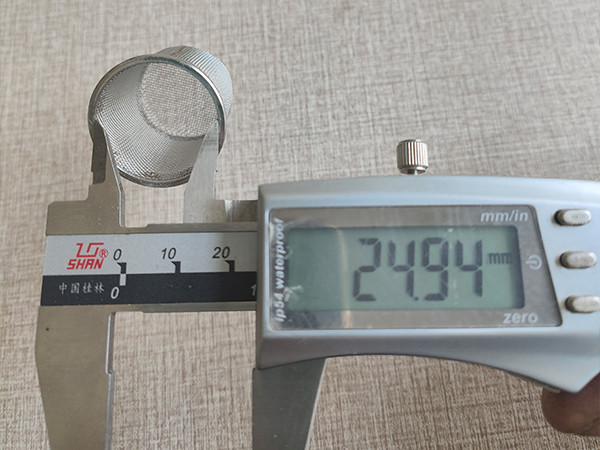

The inner diameter of the woven wire mesh cylinder is 24.94 mm.

24.94 mm inner diameter

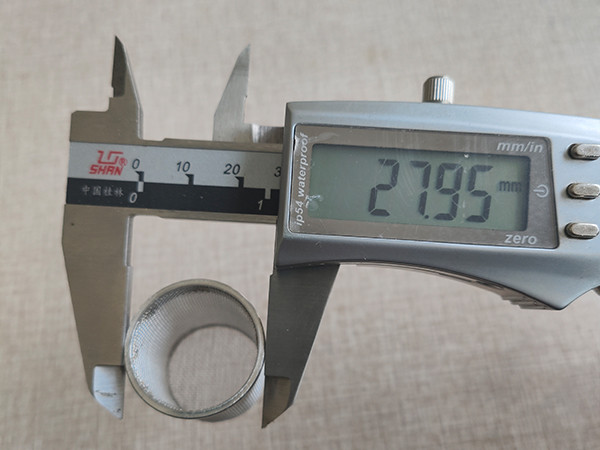

The outer diameter of the woven wire mesh cylinder is 27.95 mm.

27.95 mm outer diameter

The thickness of the flange edge of woven wire mesh cylinder is 1.96 mm.

5 mm flange total thickness

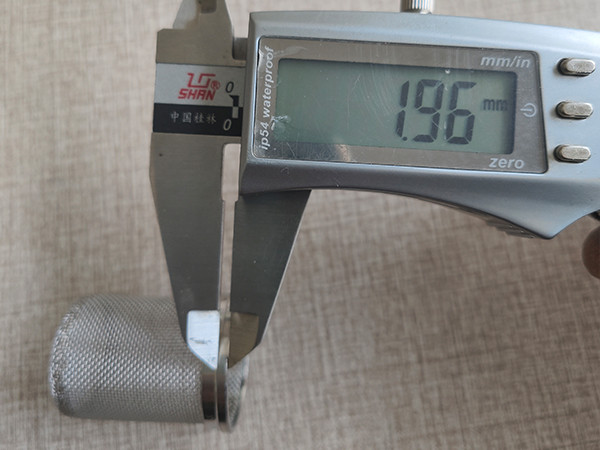

The thickness of the flange edge is 1.96 mm.

1.96 mm flange edge thickness

The total length of woven wire mesh cylinder is 34.90 mm.

34.90 mm total length

Our professional team can design and manufacture custom products according to your specific requirements, offering various options including dimensions, materials, and more. If you have any custom requirements for woven wire mesh cylinder, please feel free to contact us.
